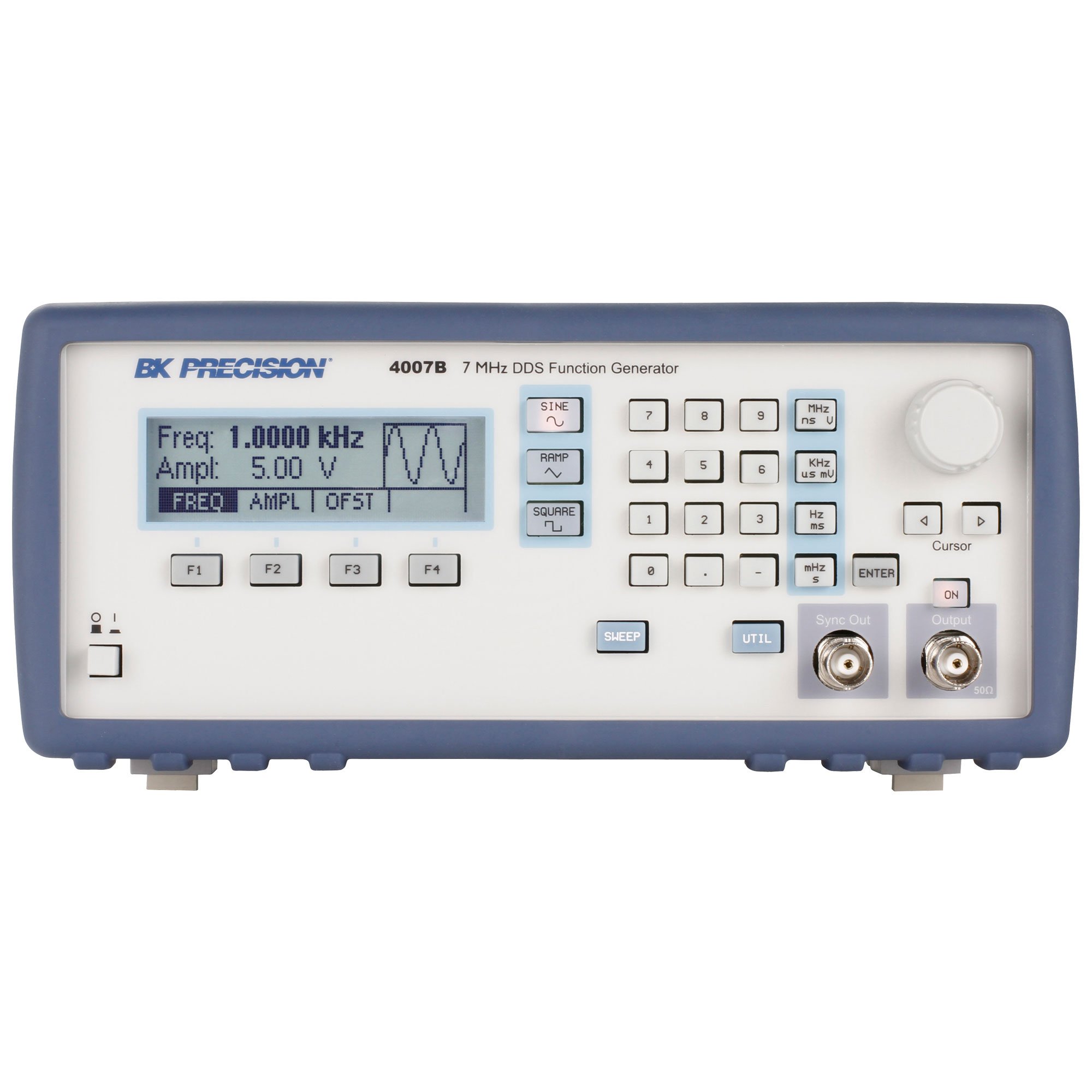

BK Precision Clearance Model 4007B - 7 MHz DDS Sweep Function Generator
Models 4007B and 4013B are versatile sweep function generators utilizing an advanced direct digital synthesis (DDS) design. These instruments generate sine, square, and triangle waveforms with high signal precision and stability. Both models provide variable output voltages from 0 to 10 Vpp into 50 ohms or up to 20 Vpp into open circuit, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.
Sine, square, and triangle/ramp waveform generation
Linear and logarithmic sweep
Adjustable duty cycle
Adjustable DC offset
Store and recall up to 9 instrument settings
Output On/Off button
Overvoltage, overcurrent, and short circuit protection on main output
Clearance Units
Instruments that are new (unopened) and are at the end of their product life cycle.
